Type 1
$0.00

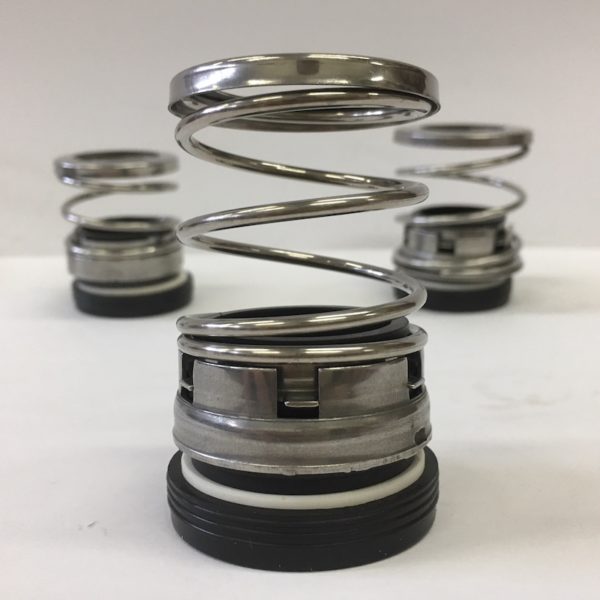

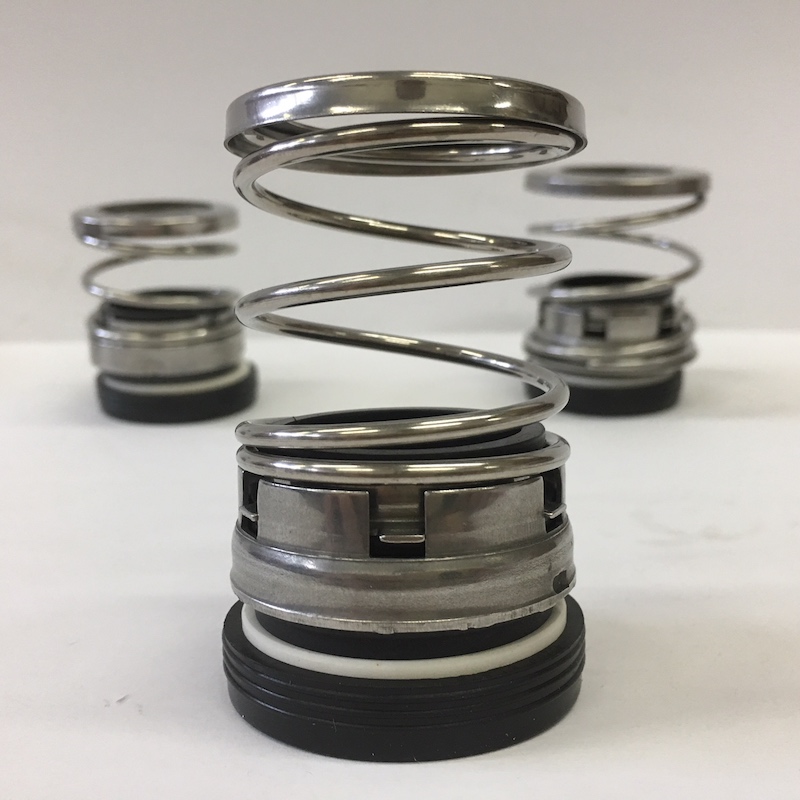

Standard Type 1 Mechanical Seals
(John Crane equivalent)
- heavier duty than Type 21 and Type 2
- longer than and can withstand even slightly higher speeds than Type 2
Rotating Seal Face: Carbon
Stationary Seat: Ceramic
Seat Style: Cup
For more seal types and materials, click here.
Product Description
| Elastomer & CCLW # | Seat OD (in.) | ||
|---|---|---|---|
| SIZE | NBR / BUNA | Viton | (Standard) |
| 3/8" | T1-0375CCN | T1-0375CCV | 0.875 |
| 1/2" | T1-0500CCN | T1-0500CCV | 0.938 |
| 5/8" | T1-0625CCN | T1-0625CCV | 1.25 |
| 3/4" | T1-0750CCN | T1-0750CCV | 1.375 |
| 7/8" | T1-0875CCN | T1-0875CCV | 1.5 |
| 1" | T1-1000CCN | T1-1000CCV | 1.625 |
| 1-1/8" | T1-1125CCN | T1-1125CCV | 1.75 |
| 1-1/4" | T1-1250CCN | T1-1250CCV | 1.875 |
| 1-3/8" | T1-1375CCN | T1-1375CCV | 2 |
| 1-1/2" | T1-1500CCN | T1-1500CCV | 2.125 |
| 1-5/8" | T1-1625CCN | T1-1625CCV | 2.375 |
| 1-7/16" | |||
| 1-3/4" | T1-1750CCN | T1-1750CCV | 2.5 |
| 1-7/8" | T1-1875CCN | T1-1875CCV | 2.625 |
| 2" | T1-2000CCN | T1-2000CCV | 2.75 |
| 2-1/8" | T1-2125CCN | T1-2125CCV | 3 |
| 2-1/4" | T1-1250CCN | T1-1250CCV | 3.125 |
| 2-3/8" | T1-2375CCN | T1-2375CCV | 3.25 |
| 2-1/2" | T1-2500CCN | T1-2500CCV | 3.375 |
| 2-5/8" | T1-2625CCN | T1-2625CCV | standard |
| 2-3/4" | |||
| 2-7/8" | T1-2875CCN | T1-2875CCV | standard |
| 3" | T1-3000CCN | T1-3000CCV | standard |
Additional Information
| Variants | T1 – 0375CCN, T1 – 0500CCN, T1 – 0625CCN, T1 – 0750CCN, T1 – 0875CCN, T1 – 1000CCN, T1 – 1125CCN, T1 – 1250CCN, T1 – 1375CCN, T1 – 1500CCN, T1 – 1625CCN, T1 – 1750CCN, T1 – 1875CCN, T1 – 2000CCN, T1 – 2125CCN, T1 – 1250CCN, T1 – 2375CCN, T1 – 2500CCN, T1 – 2625CCN, T1 – 2875CCN, T1 – 3000CCN |
|---|
