Type 2
$0.00

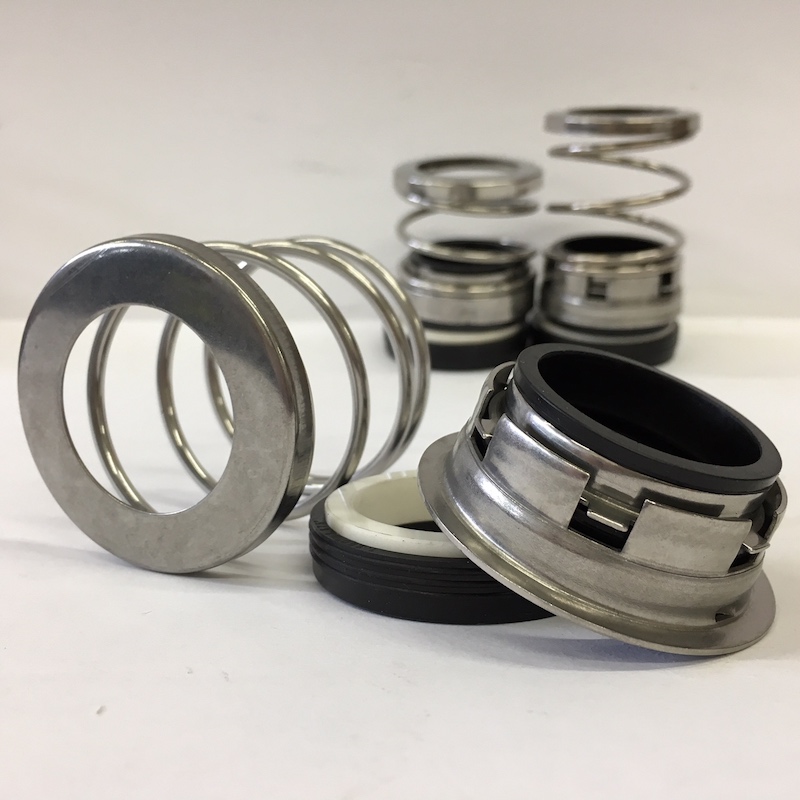

Standard Type 2 Mechanical Seals
(John Crane equivalent)
- heavier duty than Type 21, can withstand higher pressures and speeds
- wider and shorter than Type 1
Rotating Seal Face: Carbon
Stationary Seat: Ceramic
Seat Style: Cup
For more seal types and materials, click here.
Product Description
| Elastomer & CCLW # | Seat OD (in.) | ||
|---|---|---|---|
| SIZE | NBR / BUNA | Viton | (Standard) |
| 3/8" | T2-0375CCN | T2-0375CCV | 0.875 |
| 1/2" | T2-0500CCN | T2-0500CCV | 0.938 |
| 5/8" | T2-0625CCN | T2-0625CCV | 1.25 |
| 3/4" | T2-0750CCN | T2-0750CCV | 1.375 |
| 7/8" | T2-0875CCN | T2-0875CCV | 1.5 |
| 1" | T2-1000CCN | T2-1000CCV | 1.625 |
| 1-1/8" | T2-1125CCN | T2-1125CCV | 1.75 |
| 1-1/4" | T2-1250CCN | T2-1250CCV | 1.875 |
| 1-3/8" | T2-1375CCN | T2-1375CCV | 2 |
| 1-1/2" | T2-1500CCN | T2-1500CCV | 2.125 |
| 1-5/8" | T2-1625CCN | T2-1625CCV | 2.375 |
| 1-7/16" | T2-14375CCN | T2-14375CCV | 2.062 |
| 1-3/4" | T2-1750CCN | T2-1750CCV | 2.5 |
| 1-7/8" | T2-1875CCN | T2-1875CCV | 2.625 |
| 2" | T2-2000CCN | T2-2000CCV | 2.75 |
| 2-1/8" | T2-2125CCN | T2-2125CCV | 3 |
| 2-1/4" | T2-1250CCN | T2-1250CCV | 3.125 |
| 2-3/8" | T2-2375CCN | T2-2375CCV | 3.25 |
| 2-1/2" | T2-2500CCN | T2-2500CCV | 3.375 |
| 2-5/8" | T2-2625CCN | T2-2625CCV | standard |
| 2-3/4" | |||
| 2-7/8" | T2-2875CCN | T2-2875CCV | standard |
| 3" | T2-3000CCN | T2-3000CCV | standard |
Additional Information
| Variants | T2 – 0375CCN, T2 – 0500CCN, T2 – 0625CCN, T2 – 0750CCN, T2 – 0875CCN, T2 – 1000CCN, T2 – 1125CCN, T2 – 1250CCN, T2 – 1375CCN, T2 – 1500CCN, T2 – 1625CCN, T2 – 14375CCN, T2 – 1750CCN, T2 – 1875CCN, T2 – 2000CCN, T2 – 2125CCN, T2 – 1250CCN, T2 – 2375CCN, T2 – 2500CCN, T2 – 2625CCN, T2 – 2875CCN, T2 – 3000CCN |
|---|
